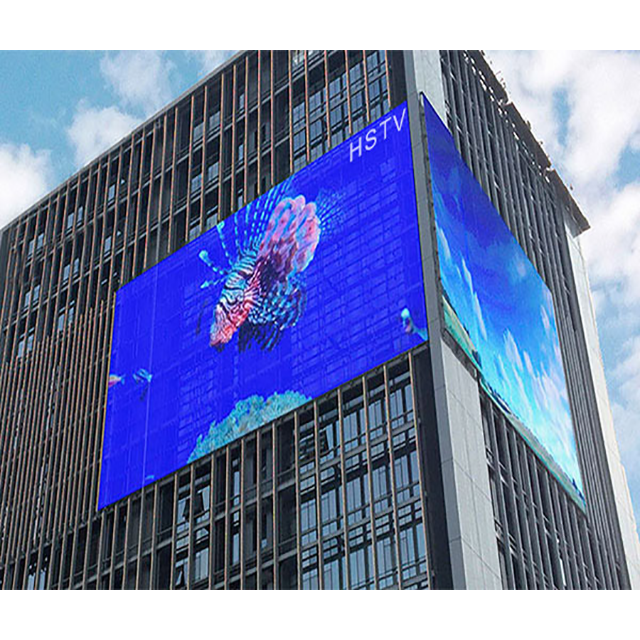

Outdoor waterproof transparent led display / led mesh curtain display for windows buildings
Pixel pitch: | 7.8/12.5mm; 7.8/15.6mm; 12.5mm; 15.625mm; 25mm; 31.25mm; |
---|---|
LED configuration:: | SMD2727 |
Pixel Density: | 10240dot/㎡; 8192dots/㎡; 6400dot/㎡; 4096dot/㎡; |

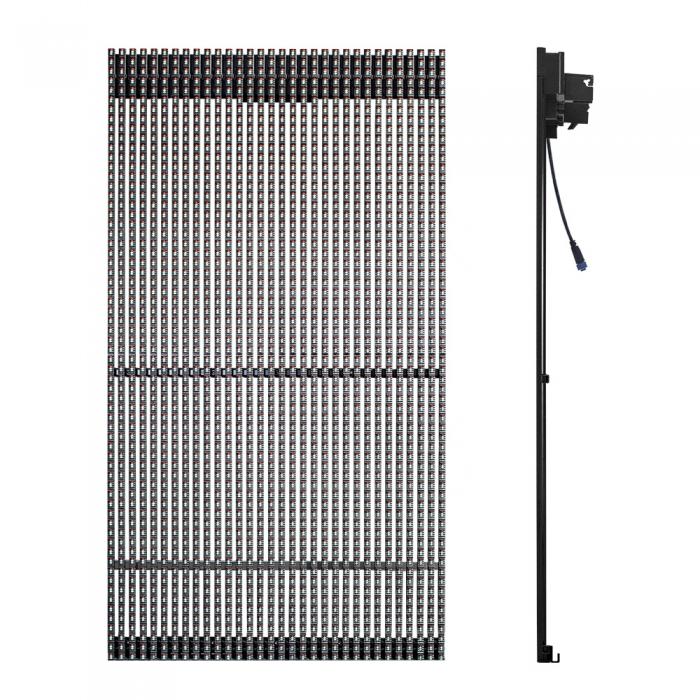

Panel size: | 500x1000mm |
Panel resolution: | 64x80dots; 64x64dots; 40x80dots; 32x84dots |
Drive mode: | Constant Current Static Drive |
Panel weight: | 16kg/16kg/16kg/12kg |
Max.Power Consumption: | 850W/㎡; 650W/㎡; 600W/㎡; 450W/㎡ |
Avg.Power Consumption: | 300W/㎡; 230W/㎡; 210W/㎡;160W/㎡ |
Brightness: | 6000nits; 5500nits; 5000nits; 5000nits |
Using enviroment: | Outdoor |
Gray scale: | 14bits |
Refresh rate: | 1920Hz |
Product Description
1.Construction is simple, fast install. 2.Low wind resist, construction simple.
3.Light, construction is simple and thin. 4.Water proof IP67, cooling by itself.
5.Maintenance freely, front and rear.
